L3 Harris M914A AN/PVS-14
Description
IMPORTANT: Our night vision devices ship from VC Optics, not direct from AP's warehouse. Please be aware that orders for this PVS-14 have a 1-2 month lead time at the moment. This is due to factory wait times from L3.
Please note that discount codes and sales do not apply to any night vision devices. If you use a discount code, we are required to invoice you for the full MSRP.

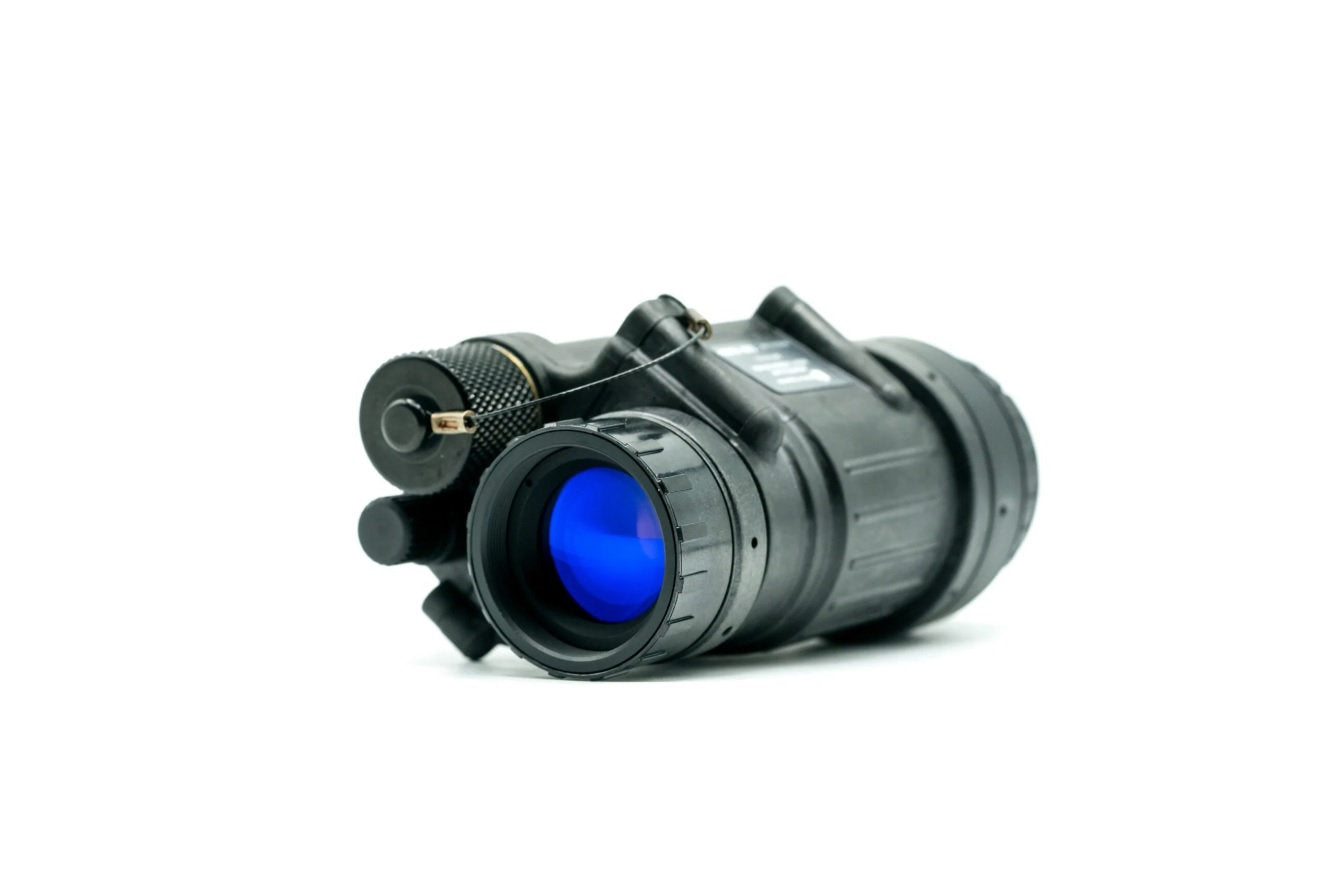

L3 Harris M914A AN/PVS-14
These L3 Harris AN/PVS-14 (M914A) are factory built at L3 Harris. These units are built with L3 Unfilmed 2376min FOM white phosphor image intensifier tubes.
The L3 PVS-14 is one of the most economical and versatile night vision devices available. A PVS-14 can be helmet mounted, rifle mounted, or used as a handheld device. When helmet mounted, the user has the option of choosing which eye they prefer to use with device. This leaves the user with one unaided eye. An unaided eye is beneficial in environments where the user must read ambient lighting conditions. As a result, the user has an increased ability to gauge true lighting conditions. Because of this the PVS-14 is an excellent choice for urban duty use and those seeking the versatility that a monocular brings.
We are frequently asked, “is a PVS-14 worth getting or should I wait to get Binos?” Binocular night vision is amazing and has many benefits. However, PVS-14s have many uses and are a great cost effective way to see at night. PVS-14s are a very capable device and we think that they are a great way to get into night vision.
Tube Specs
These PVS-14 units are factory built at Insight Warrior Systems and come with 2376 min FOM L3Harris Unfilmed white phosphor milspec image intensifier tubes. These tubes are L3’s most advanced image intensifier tubes and are selected by L3Harris for their finished goods. These are the same tubes that come standard in PVS-31a’s.
2376 minimum FOM Unfilmed White Phosphor:
- FOM: 2376 minimum
- Milspec Spot Spec: can have max 4 spots per tube larger than .003″, no spots in zone 1 larger than .003″. Spots </= .003″ are acceptable.
- This option is how they ship from the factory.
2376 minimum FOM Unfilmed White Phosphor – Aviation Grade:
- FOM: 2376 minimum FOM
- Aviation Spot Spec: Max 3 spots per tube larger than .003″ in zone 3, no spots larger than .003″ in zone 1 or 2. Spots </= .003″ are acceptable.
- This option is for our customers that want a stricter spot spec offered from the factory. This option is hand selected strictly to meet the above aviation spot spec. Even though the M914A has an incredible tube, spots are still a reality in all night vision. If you are a customer that wants to insure a stricter spot spec this is a great option. Please understand that although an aviation spot spec is way stricter than the milspec spot spec, spots </= .003″ are still acceptable and are a reality of night vision.
- Please allow for additional lead time for aviation grade as this is a stricter spot spec than offered from L3Harris on these systems. Since we cannot order these to an aviation spot spec from L3Harris we cannot quote a definitive lead time.
